| Place of Origin: | China |
|---|---|
| Brand Name: | BXT |
| Model Number: | BXT-MTB-127 |
| Minimum Order Quantity: | 1pcs |
| Payment Terms: | D/A, D/P, T/T, L/C |
| Supply Ability: | 500pcs per Month |
| Type: | Full Suspension Carbon Frame 20er | Material: | T1000 Carbon Fiber |
|---|---|---|---|

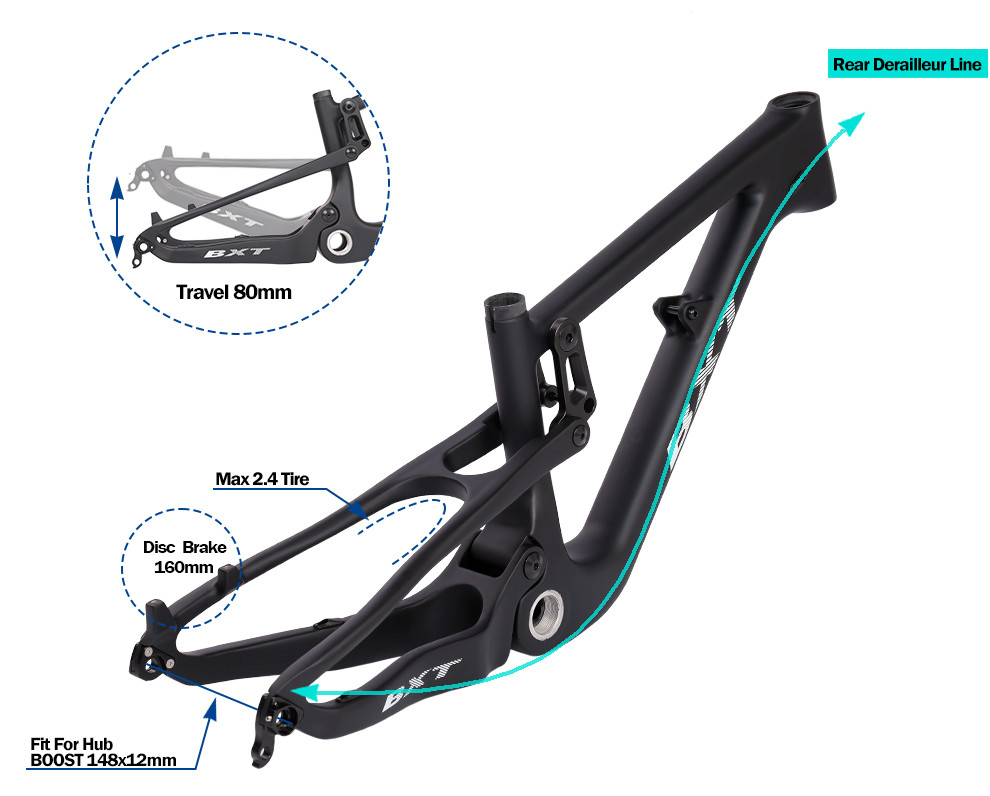

| Frame Travel: | 80mm | Fit For Rear Shock: | Length 165mm,Bushing 22mm |
| Fit For Seat Clamp: | 34.9mm | Fit For Seat Post: | 31.6mm |
| Fit For Disc Brake: | 160mm | Fit For Bottom Bracket: | BSA(73mm) |
| Fit For Rear Wheel Hub: | Boost 148x12mm | Fit For Headset: | Tapered,Top 1-1/8(41.8mm) Down 1-1/2(52mm) |
| Fit For Tire: | 20er.Max 2.4inch Tire | ||
| High Light: | 20 Carbon Full Suspension Frame,80mm Carbon Full Suspension Frame,BSA full carbon mtb frame |
||

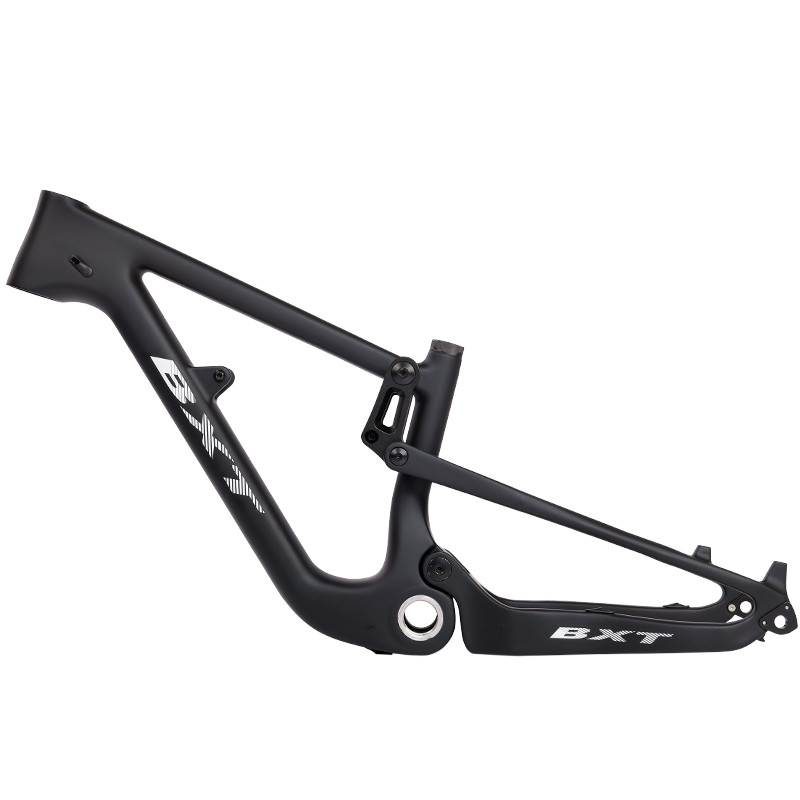

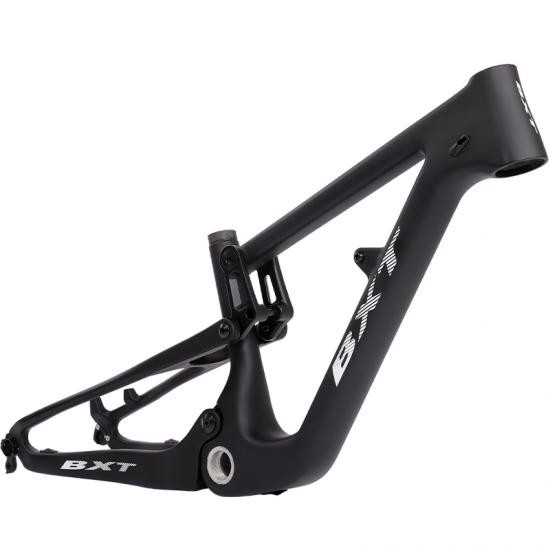

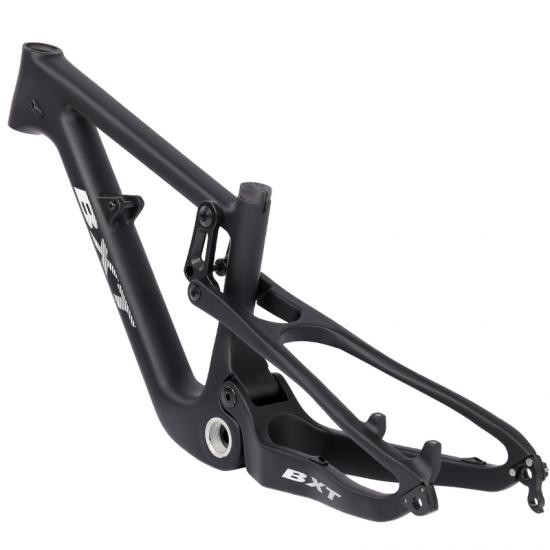

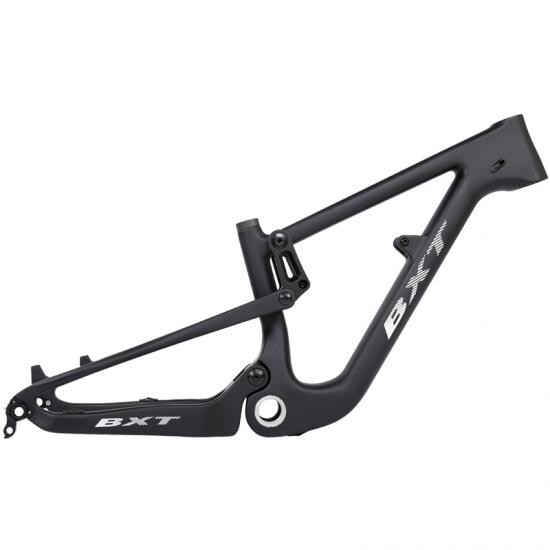

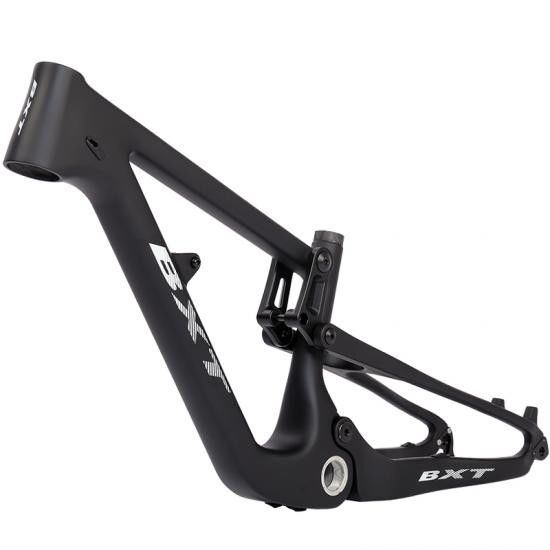

20inch Kids MTB Frames Suspension Type
The most popular model MTB Frame on 2022,Used EPS technology and Compatible thru axle Boost 148x12mm rear wheel specifications. Can use tires up to 2.25 inches wide. Available sizes match the children height 120cm-135cm
We can build the complete bike which components can adjust to meet your requirements. The final prices can only be determined after a comprehensive final discuss with you. We send individual samples for reputable wholesalers/retailers quickly
What is EPS technology?
>1. Strong carbon fiber shell, durable frame, strong and light weight.
> 2.the finished frame has better hardness,
toughness,strength to weight ratio, tightness and other qualities.
>3.Significantly improve the stability and smoothness of the
lamination and joint between the inner cavity of the frame.
>4 greatly reduce the excessive concentration of internal stress of
the frame, thelength of the finished frame life, stable quality
>5.The finished frame has a smooth appearance.
Production Information
| Fit for Seat Post | 31.6mm |
| Fit for Crank | 125mm |
| Fit for Chain Wheel | Max 34T |
| Seat Post Depth | 155mm |
| Fit for Disc Brake | 160mm |
| Fit For Bottom Bracket | Screw-in BSA(73mm) |
| Fit for Headset | Tapered,Top 1-1/8(41.8mm) Down 1-1/2(52mm) |
| Fit for Tire | 20er.Max 2.4Tire |
| Rear Spacing Specification | Boost 148x12mm |
| Suitable Height | 120cm-135cm |
| Max load | 250kg |
| Recommend Fork Travel | 80-120mm |
| Brake,Derailleur Cable | Frame Interna |
