| Place of Origin: | China |
|---|---|
| Brand Name: | BXT |
| Model Number: | BXT-FD-032 |
| Minimum Order Quantity: | 1 |
| Delivery Time: | 7-14 days |
| Payment Terms: | D/P, D/A, L/C, T/T |
| Material: | T1000 Carbon Fiber | Frame Size: | 20 Inch |
|---|---|---|---|
| Product Type: | Folding Bike Frameset 20inch | Fork: | Hard Carbon Fiber Fork No Suspension |
| Customizable: | Acceptable | ||
| High Light: | Hard Carbon Folding Bike Frame,BXT Carbon Folding Bike Frame,Lightweight 20 inch bike frame |
||

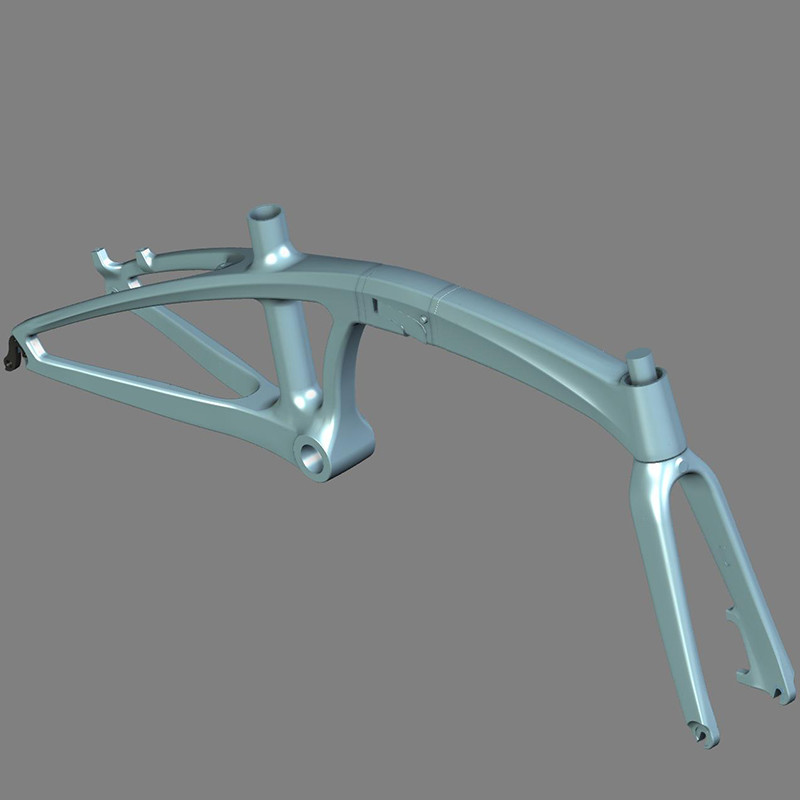

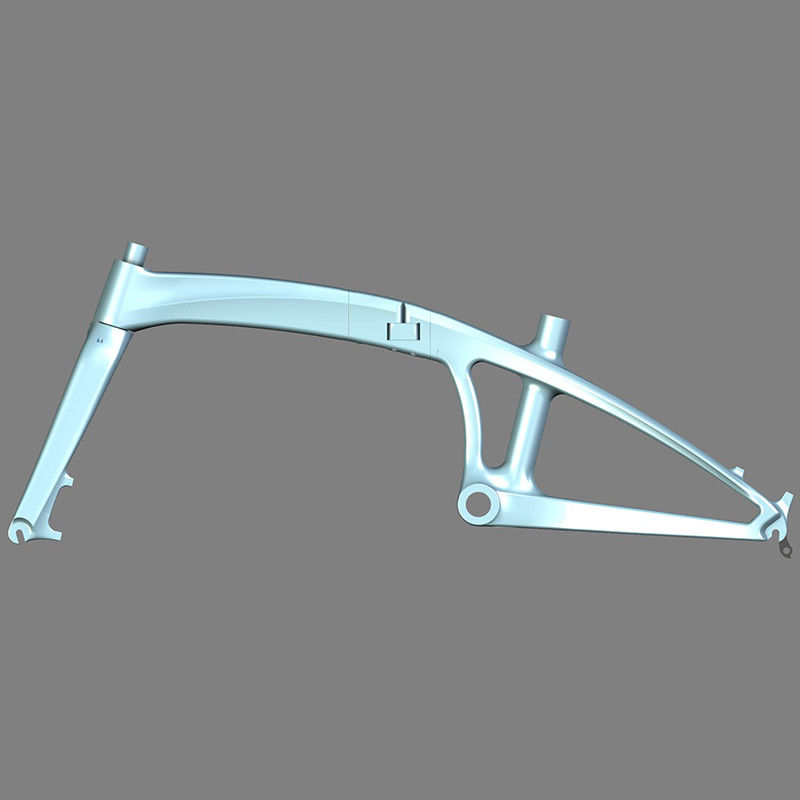

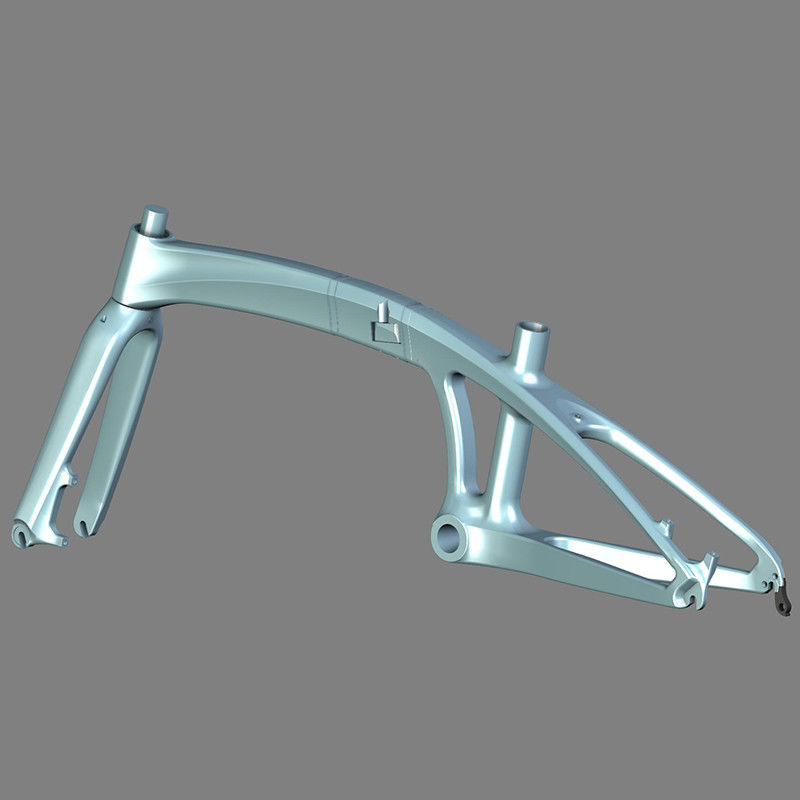

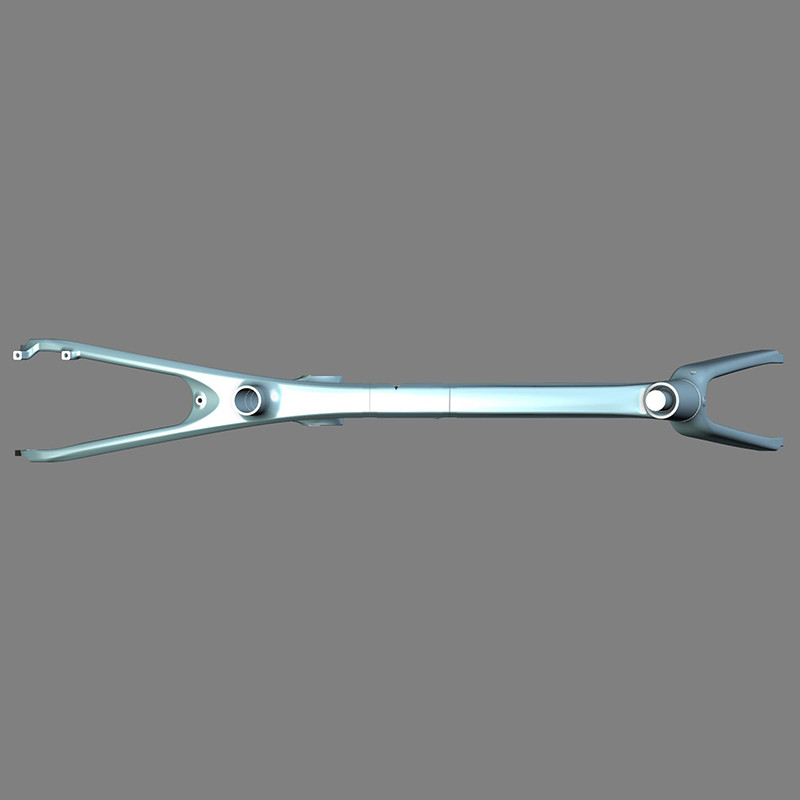

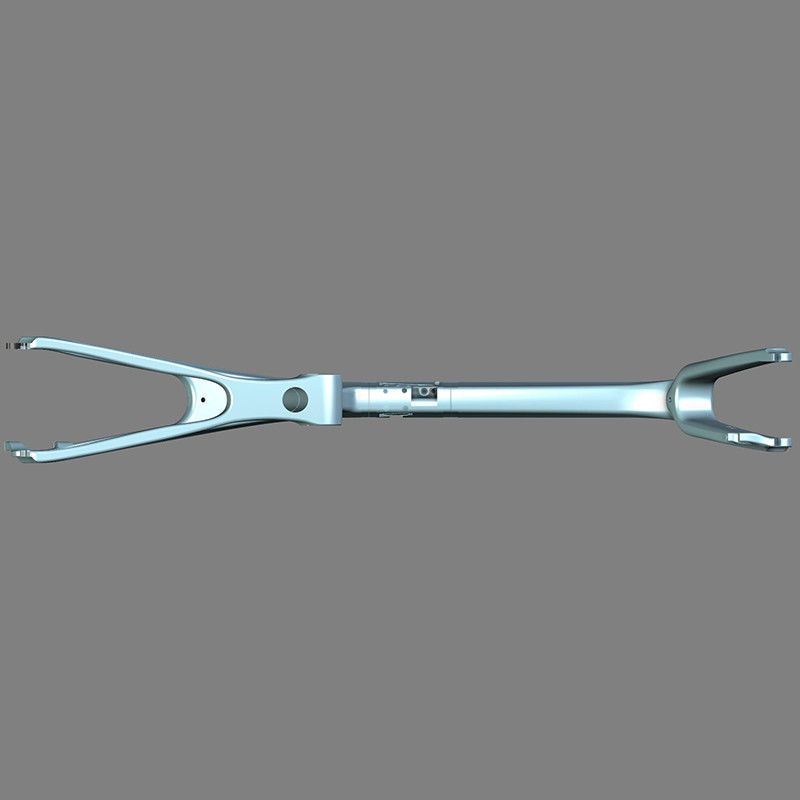

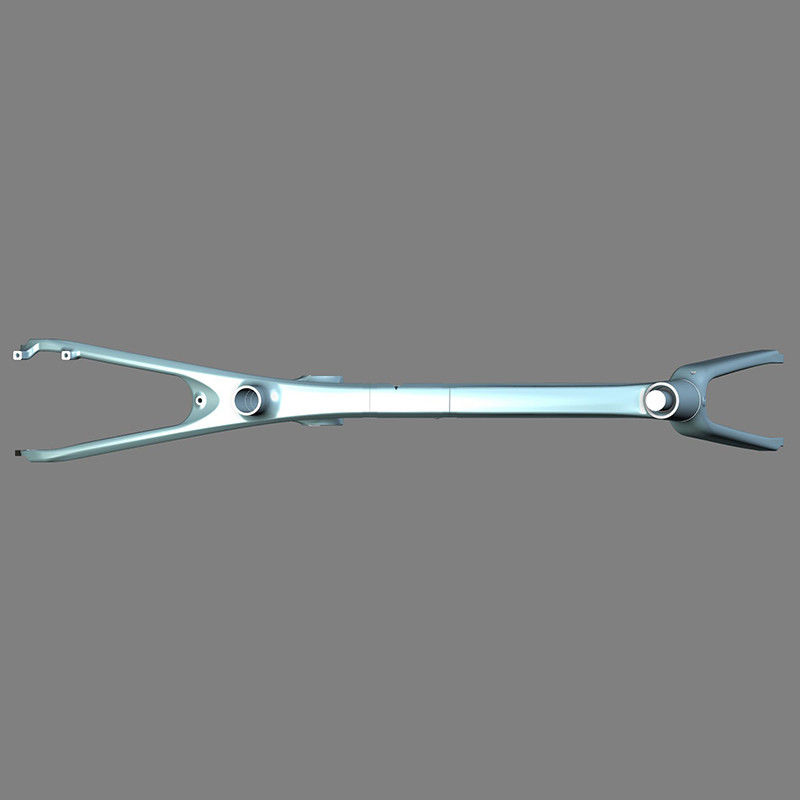

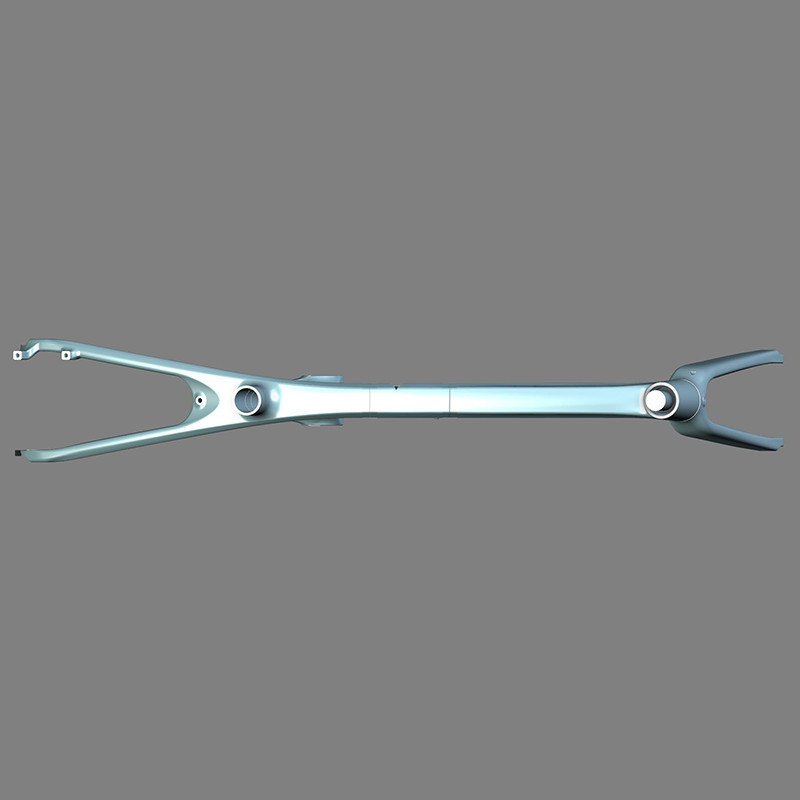

Folding Carbon Fiber T1000 Frameset produced by EPS technology, Dual disc brake 160mm,
We would like to complete folding bike with the components as your required, to creat your own personalized bike. From the design work, to the selection of shifting groupset.
What is EPS technology?
>1. Strong carbon fiber shell, durable frame, strong and light weight.
> 2.the finished frame has better hardness,
toughness,strength to weight ratio, tightness and other qualities.
>3.Significantly improve the stability and smoothness of the
lamination and joint between the inner cavity of the frame.
>4 greatly reduce the excessive concentration of internal stress of
the frame, thelength of the finished frame life, stable quality
>5.The finished frame has a smooth appearance.
Production Information
| Model No. | BXT-FD-032 | |
| Frame Type | Carbon Folding Bike Frameset 20inch; | |
| Material | T1000 Carbon Fiber 3K weave; | |
| Frame Travel | None | |
| Cable Running | Frame Internal | |
| Components Compatible Size |
Fork | 20inch Carbon Hard Fork |
| Headset | Tapered;Top 1-1/8 Down 1-1/2 | |
| SeatPost | Fit for Seat Post: 33.9mm | |
| Seat Clamp | Fit for Seat Clamp: 41mm | |
| Bottom Bracket | Screw-in BSA 68mm | |
| Weight | 1650g+/-100g | |
| Brake Systerm | Disc Brake 160mm | |
| Tire | Fit for Tire: 20er*2.1''(405*25C) | |
| HUB F/R | Fit for Hub: Fork(100x9mm),Frame(135x9mm); | |
