| Place of Origin: | China |
|---|---|
| Brand Name: | BXT |
| Model Number: | BXT-MTB-CEF49 |
| Minimum Order Quantity: | 1pcs |
| Packaging Details: | one frame put in cartbon |
| Payment Terms: | D/A, D/P, T/T, L/C |
| Supply Ability: | 500pcs per Month |
| Type: | Full Suspension Carbon Frame 29er | Material: | T1000 Carbon Fiber |
|---|---|---|---|
| Frame Travel: | 150mm | Fit For Rear Shock: | Length 205MM (Eye To Eye Length) |
| Fit For Seat Clamp: | 34.9mm | Fit For Seat Post: | 31.6mm |
| Fit For Disc Brake: | 160mm | Fit For Bottom Bracket: | BSA(73mm) |
| Fit For Rear Wheel Hub: | 135x9mm And 142x12mm Or Boost 148x12mm | Fit For Headset: | Tapered,Top 1-1/8(41.8mm) Down 1-1/2(52mm) |
| Fit For Tire: | 29er.Max 2.25inch Tire,BOOST Specification Max Use 2.35inch Tire | ||
| High Light: | Carbon Fiber Full Suspension Bike Frames,OEM Full Suspension Bike Frames 29er,T1000 Full Suspension Carbon Frame |
||

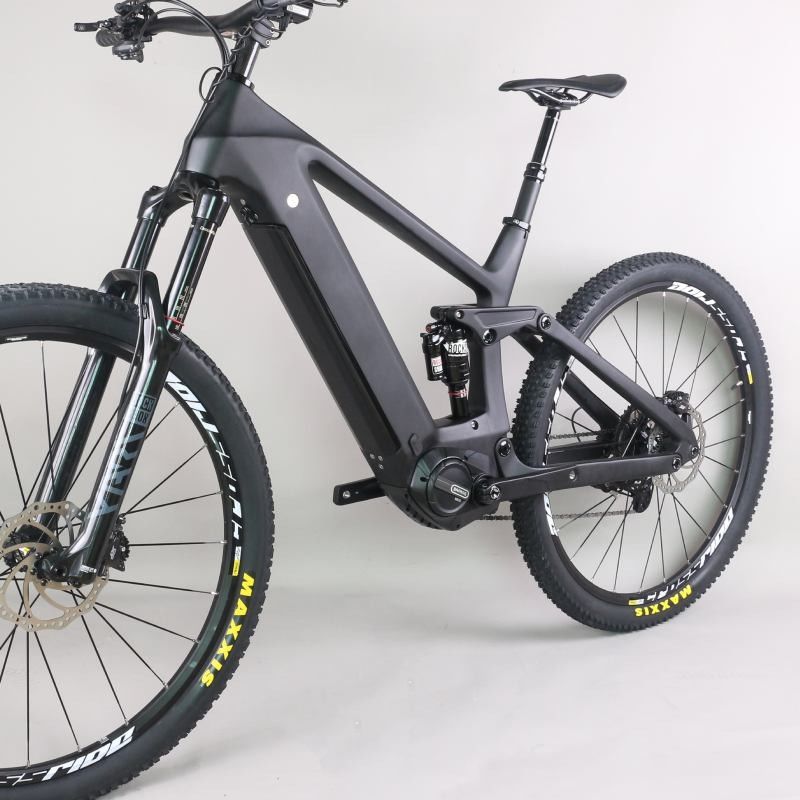

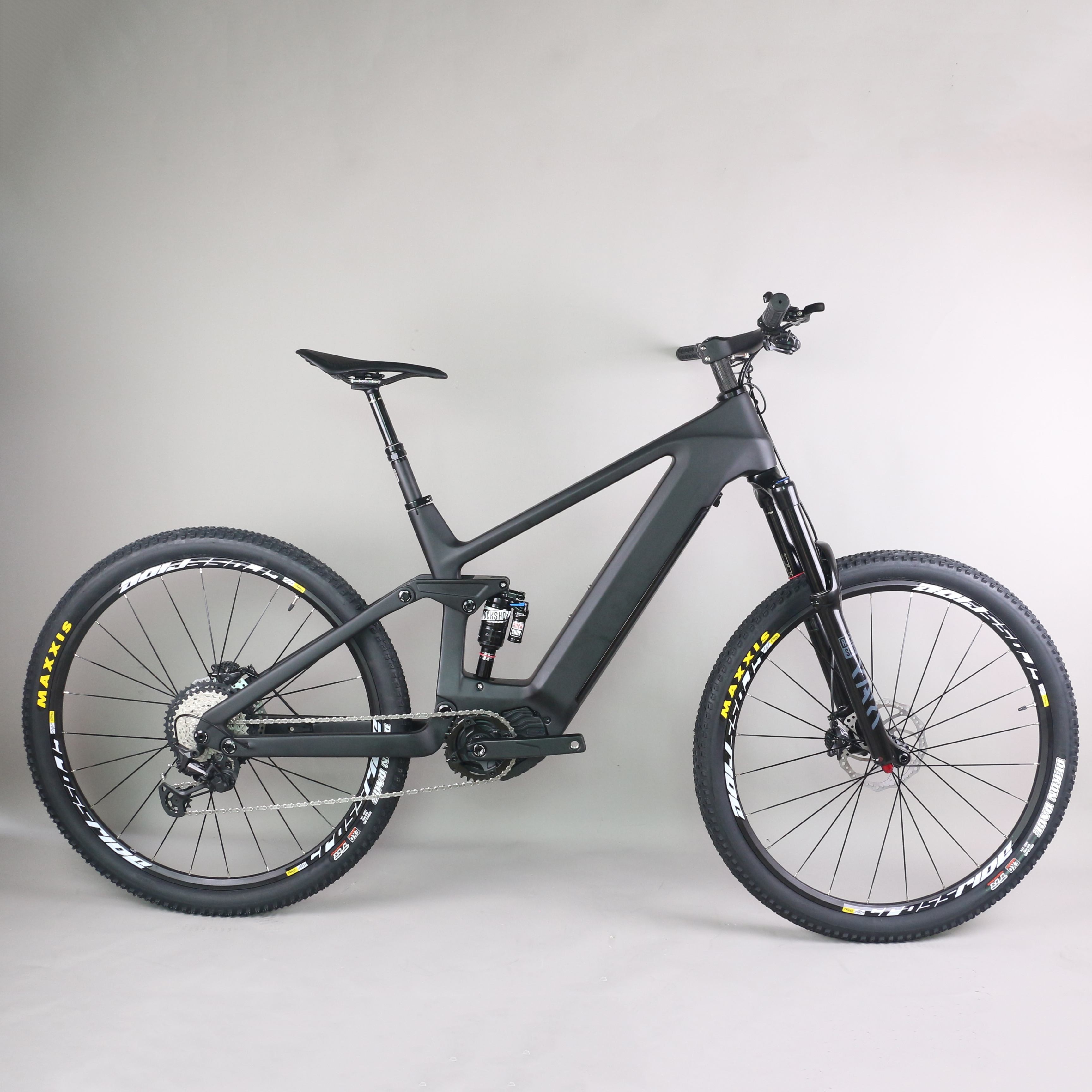

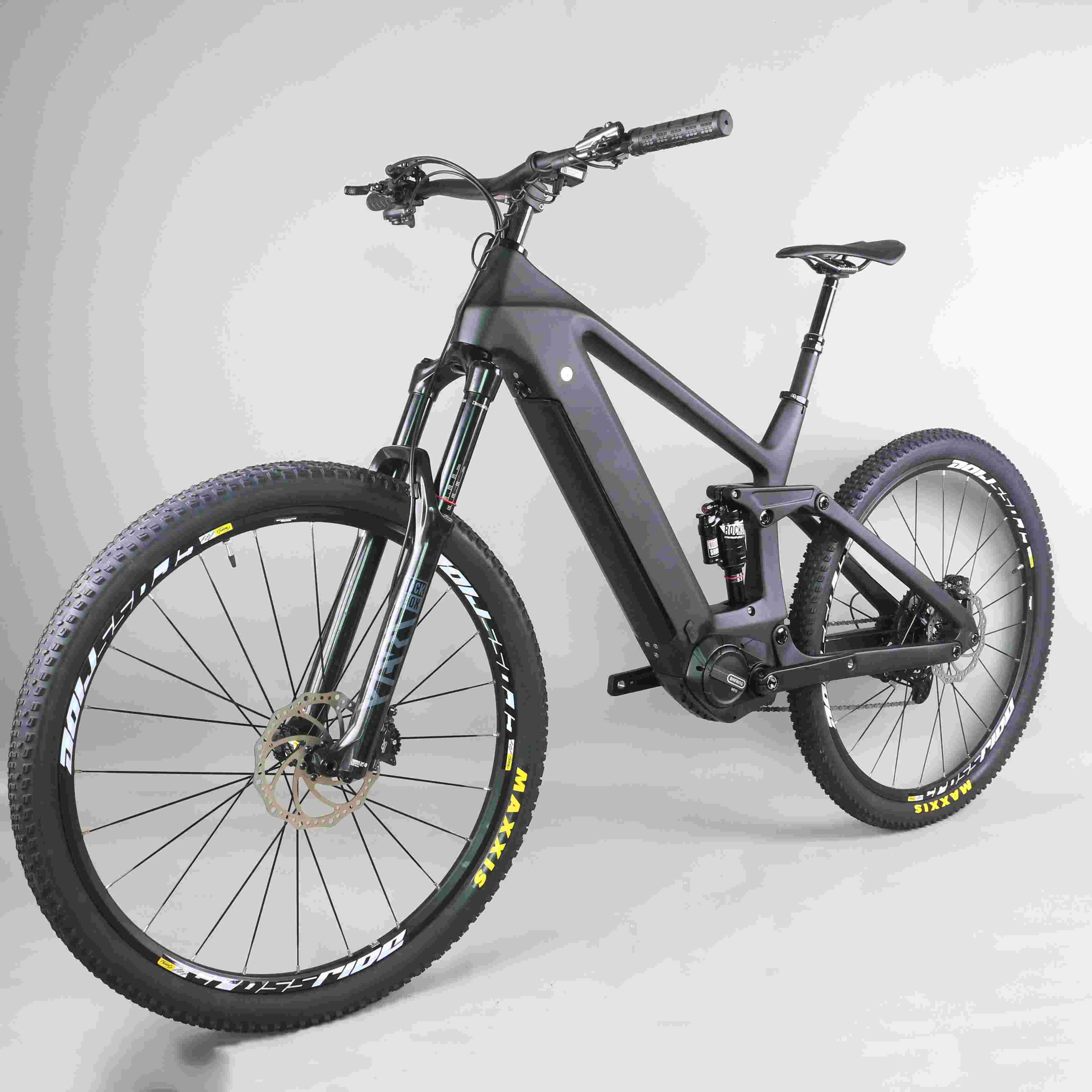

T1000 Carbon Fiber Full Suspension E Bike Frames Boost Disc Brake

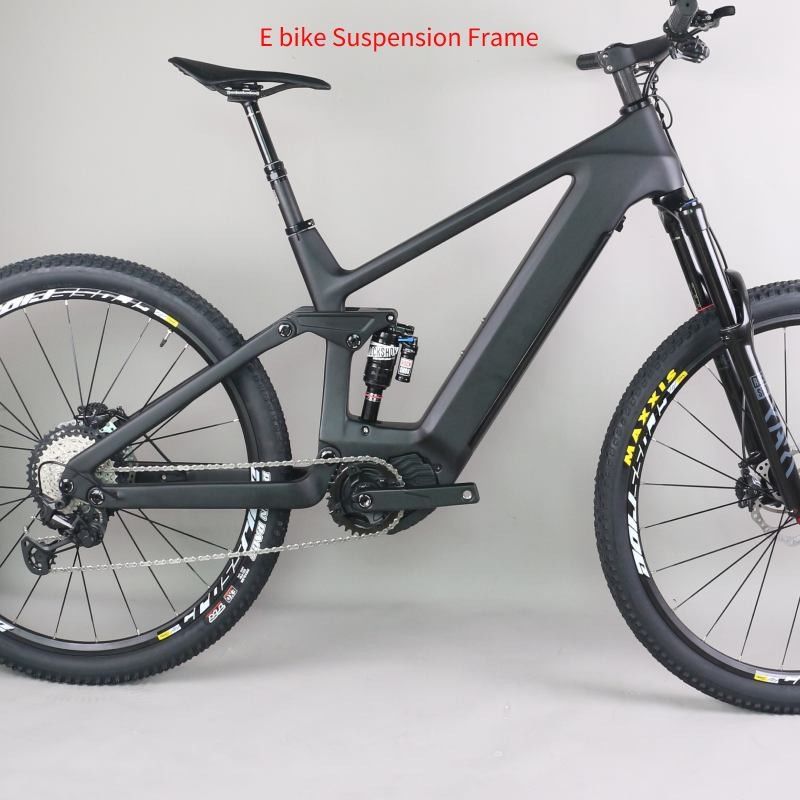

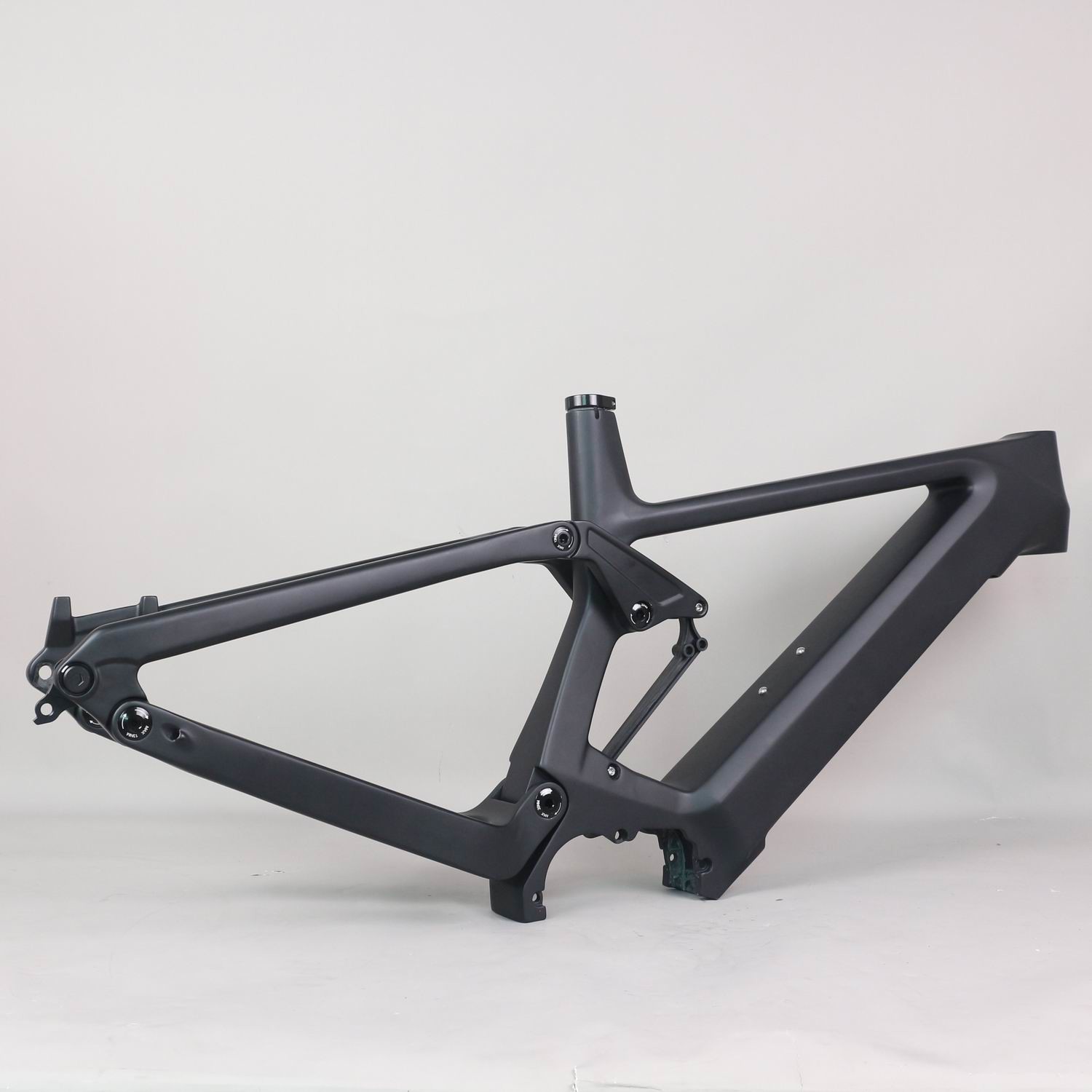

Carbon Fiber Electric Bike Suspension Frame 29er
2023 new modulus carbon fiber T1000 full suspension Ebike frame produced by EPS technology.Dual disc brake 100mm frame travel. Compatible with 142x12mm,135x9mm or BOOST 148x12mm rear wheel specifications. Can use tires up to 2.35 inches wide. Available in S",M",L",XL" sizes.
What is EPS technology?
>1. Strong carbon fiber shell, durable frame, strong and light weight.
> 2.the finished frame has better hardness,
toughness,strength to weight ratio, tightness and other qualities.
>3.Significantly improve the stability and smoothness of the
lamination and joint between the inner cavity of the frame.
>4 greatly reduce the excessive concentration of internal stress of
the frame, thelength of the finished frame life, stable quality
>5.The finished frame has a smooth appearance.
Product Description
| Type: | E-MTB 29ER BAFANG E69 |
| Material | High modulus carbon fiber T800 |
| Weave: | UD |
| Size | 29* (15.5''/17.5''/19'') |
| Weight: | 3500g+40g Size (17") |
| Headset-Top/Down | upper 52mm lower 52mm |
| Brake model: | Disc brake(180mm) |
| SeatPost: | 31.6mm(34.9mm seat clamp) |
| MaximumTyre | 29*2.6 |
| Rear Axle Shaft: | 12*148mm Thru Axle |
| Shock Absorber Length: | 190mm (Eye to Eye Length) |
| Shock Absorber Travel: | 5Imm |
| Front Spacing Travel: | 160mm |
| Rear Spacing Travel: | 150mm |
| Battery | Bafang F25 |
| Voltage: | 48V |
| Capacity! | 15AH |
| Energy: | 720WH |
| Motor System | BAFANG M510 |
| Warranty | 2 Years |
To Buyers
Welcome to BXT Carbon bike factory!
We are manufacturer and have been on this line for 10 years.
Our main products has Complete Carbon Mountain Bike, Carbon Mountain Frame,Carbon Suspension Mountain Bike,Carbon Road Frameset,Carbon E Bike Frames, Other Bicycle parts ect.
We have Advantages below:
1. OEM&ODM manufacturing welcomed and professional!
2. Sample order is available and Delivery Quickly!
3. We will reply you for your inquiry in 24 hours!
FAQ
------------------------------------------------------------------------------
Q: What’s your payment clause?
A: We accept T/T,Western Union and Paypal,and 30% should be paid in advance,the rest be paid before shipping.
Q: I am interest in the carbon fiber bike frame,but I konw nothing about it?
A: Just contact us and we will let you know everything about carbon fiber bike frame
Q: How long I can get the goods?
A: It's depend on how many product you purchase and way of shipment, we will reply you after receiving inquiry.
