| Place of Origin: | China |
|---|---|
| Brand Name: | BXT |
| Model Number: | BXT-MTB-036 |
| Minimum Order Quantity: | 1 |
| Delivery Time: | 7-14 days |
| Payment Terms: | D/A, D/P, T/T, L/C |
| Product Name: | 275er Carbon Mountain Complete Bike | Frame Size: | 27.5*15.5/17/18.5/20inch |
|---|---|---|---|
| Net Weight: | 11.5kgs | Material: | T1000 Carbon Fiber |
| Package Size: | 142cmX23cmX76cm | Package Weight: | 15kgs |
| Lead Time: | 10 Days | Customizable: | Acceptable |
| Warranty: | 2 Years | Use: | Mountain Bikes,Mountain Bicycle |
| Finish: | In Raw/glossy/matte/custom Paint And Decals Logo | Bottom Bracket: | BSA |
| Color: | Red,Blue,Black,Customer's Request,Yellow | Type: | MTB Frame,27.5 Mountain Bike Hard Tail Mtb Carbon Frame BB92,29'' Carbon MTB Bike Frame |
| Foldable: | No | Disc Rotor Size: | 160mm |
| High Light: | 27.5 Carbon Fiber Mountain Complete Bike,11Speed Mountain Complete Bike,11Speed Disc Brake MTB Bike |
||
Carbon Fiber Mountain Bike 275er Carbon Fiber MTB Bicycle Boost
27.5er carbon fiber complete mountain bike, which frames produced by EPS technology,Compatiable 11 speed M5100 Groupset, assembled suspension forks, Available in 27.5*15.5/17/18.5/20inch sizes.
We would like to complete mountain bike with the components as your required, to creat your own personalized bike. From the design work, to the selection of shfiting groupset.And customized logo and color acceptable.
What is EPS technology?
>1. Strong carbon fiber shell, durable frame, strong and light weight.
> 2.the finished frame has better hardness,
toughness,strength to weight ratio, tightness and other qualities.
>3.Significantly improve the stability and smoothness of the
lamination and joint between the inner cavity of the frame.
>4 greatly reduce the excessive concentration of internal stress of
the frame, thelength of the finished frame life, stable quality
>5.The finished frame has a smooth appearance.

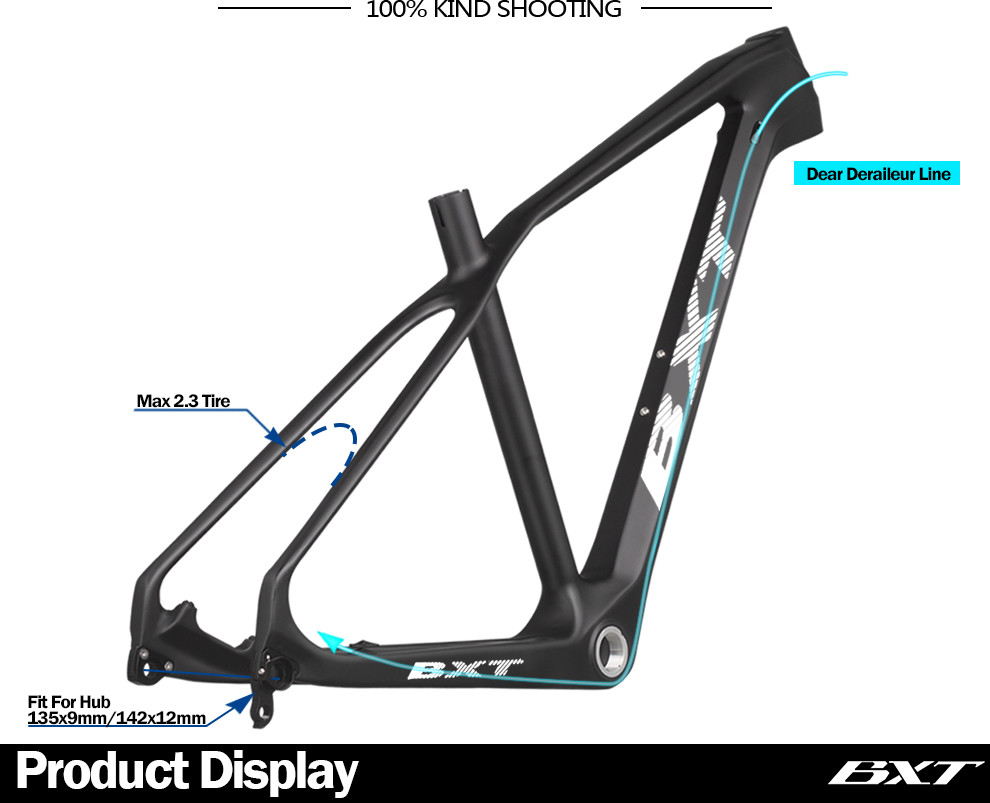

Product Description for Frame
| Model No. | BXT-MTB-036 | |
| Frame Type | Carbon Mountain Bike Frame 27.5er; | |
| Material | T1000 Carbon Fiber | |
| Frame Travel | None | |
| Cable Running | Frame Internal | |
| Components Compatible Size |
Headset | Tapered;Top 1-1/8 Down 1-1/2 |
| SeatPost | 31.6mm | |
| Seat Clamp | Fit for Seat Clamp: 37mm; | |
| Bottom Bracket | Screw-in BSA(73mm) | |
| Fork | Fit for Suspension Fork Travel 80-100mm | |
| Derailleur | Fit for Front Derailleur Adapter: 34.9mm | |
| Brake Systerm | Disc Brake 160mm | |
| Tire | Fit for Tire: 27.5er.Max 2.3Tire; | |
| HUB/R | Fit for Hub: 135x9mm or 142x12mm; | |
Product Description for Bike
| Bike Model | BXT-MTB-036 | |
| Frame Type | BXT Brand Carbon MTB Bike Frame 275 er | |
| Frame Size | S/M/L/XL | |
| Fork | ARTECK Brand 27.5er MTB Bikes Air Suspension Fork | |
| Handelbar | TAOK Brand 7075 Aluminum Alloy 31.8mm 680mm | |
| Seatpost | TAOK Brand 7075 Aluminum Alloy | |
| Stem | TAOK Brand 7075 Aluminum Alloy 90mm | |
| Groupset | Front Brake | Shimano BR-MT200 160mm Disc Brake |
| Rear Brake | Shimano BR-MT200 160mm Disc Brake | |
| Rear Derailleur | Shimano RD-M5100 11S-speed | |
| Shift Levers | Shimano SL-M5100 11S-speed | |
| Carnkset | TAOK Brand 7075 Aluminum Alloy 170mm | |
| Chain | YBN Brand 11-speed | |
| Cassette | 11-42T | |
| Wheels | Rims | Taok Brand 7075 Aluminum Alloy Clincher |
| Front Hub | Taok Brand 7075 4 Bearings Aluminum Alloy 100*15mm | |
| Rear Hub | Taok Brand 7075 4 Brearings Aluminum Alloy 142*12mm | |
| Front Tire | Clincher 27.5er.Max 2.2Tire; | |
| Saddle | BXT leather bicycle saddle PU | |
| Color | Customizable colors | |
To Buyers
Welcome to BXT Carbon bike factory!
We are manufacturer and have been on this line for 10 years.
Our main products has Complete Carbon Mountain Bike, Carbon Mountain Frame,Carbon Suspension Mountain Bike,Carbon Road Frameset,Carbon E Bike Frames, Other Bicycle parts ect.
We have Advantages below:
1. OEM&ODM manufacturing welcomed and professional!
2. Sample order is available and Delivery Quickly!
3. We will reply you for your inquiry in 24 hours!
FAQ
------------------------------------------------------------------------------
Q: What’s your payment clause?
A: We accept T/T,Western Union and Paypal,and 30% should be paid in advance,the rest be paid before shipping.
Q: I am interest in the carbon fiber bike frame,but I konw nothing about it?
A: Just contact us and we will let you know everything about carbon fiber bike frame
Q: How long I can get the goods?
A: It's depend on how many product you purchase and way of shipment, we will reply you after receiving inquiry.
