| Place of Origin: | China |
|---|---|
| Brand Name: | BXT |
| Model Number: | BXT-MTB-117 |
| Minimum Order Quantity: | 1pcs |
| Payment Terms: | D/A, D/P, T/T, L/C |
| Supply Ability: | 500pcs per Month |
| Type: | 29er Carbon All Mountain Bicycle Frame AM | Material: | T1000 Carbon Fiber |
|---|---|---|---|
| Frame Travel: | 150mm | Fit For Rear Shock: | Length 210mm,Bushing 24mm |
| Fit For Seat Clamp: | 34.9mm | Fit For Seat Post: | 31.6mm |
| Fit For Disc Brake: | 160mm | Fit For Bottom Bracket: | BSA(73mm) |
| Fit For Rear Wheel Hub: | Boost 148x12mm | Fit For Headset: | Tapered,Top 1-1/8(41.8mm) Down 1-1/2(52mm) |
| Fit For Tire: | 29er.Max 2.4inch Tire | ||
| High Light: | Travel 150mm Carbon Mountain Bike Frame,T1000 Carbon Mountain Bike Frame |
||

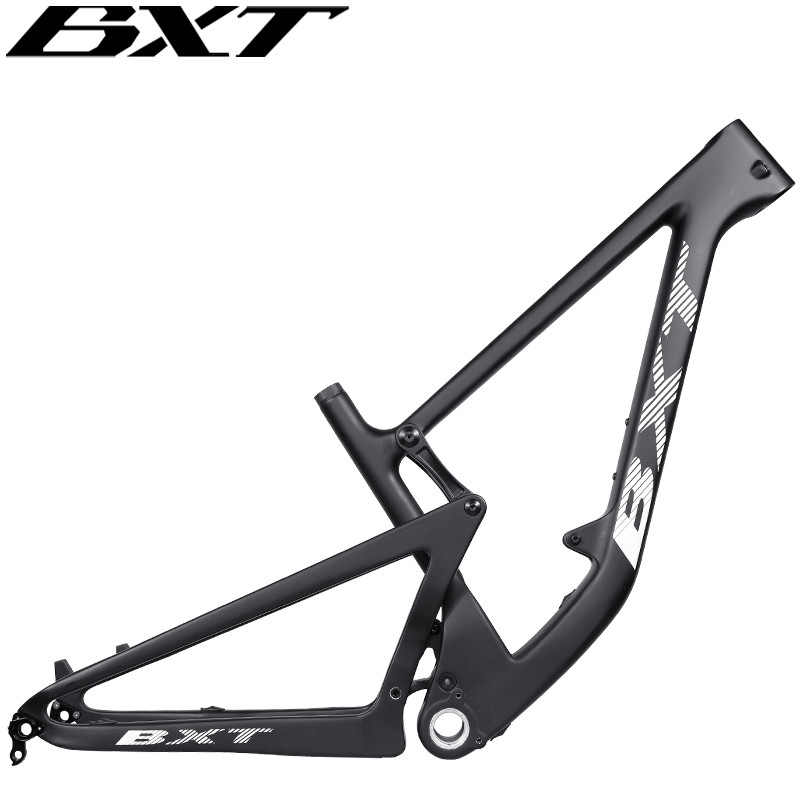

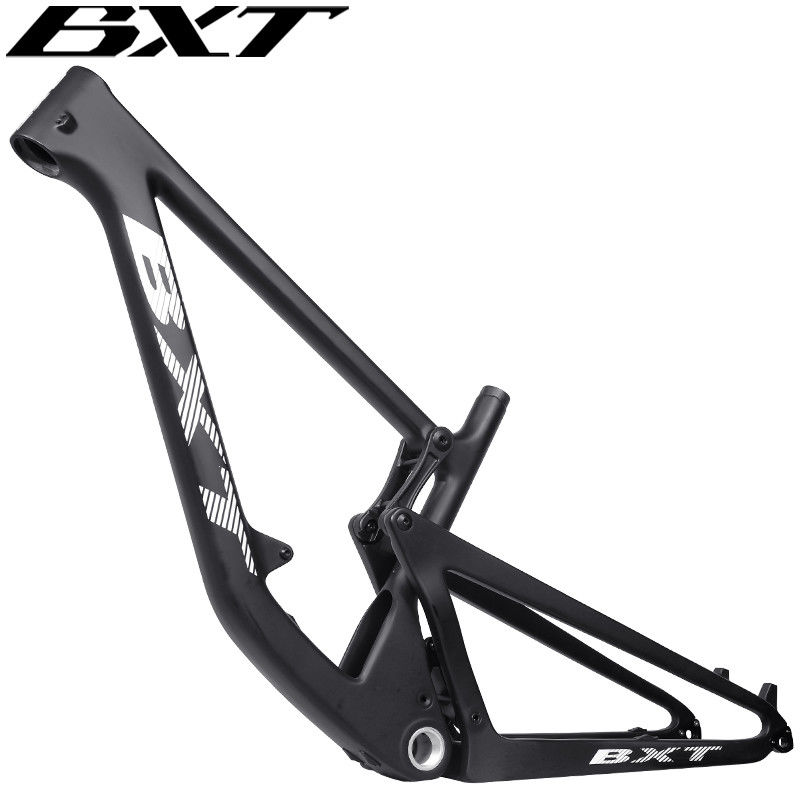

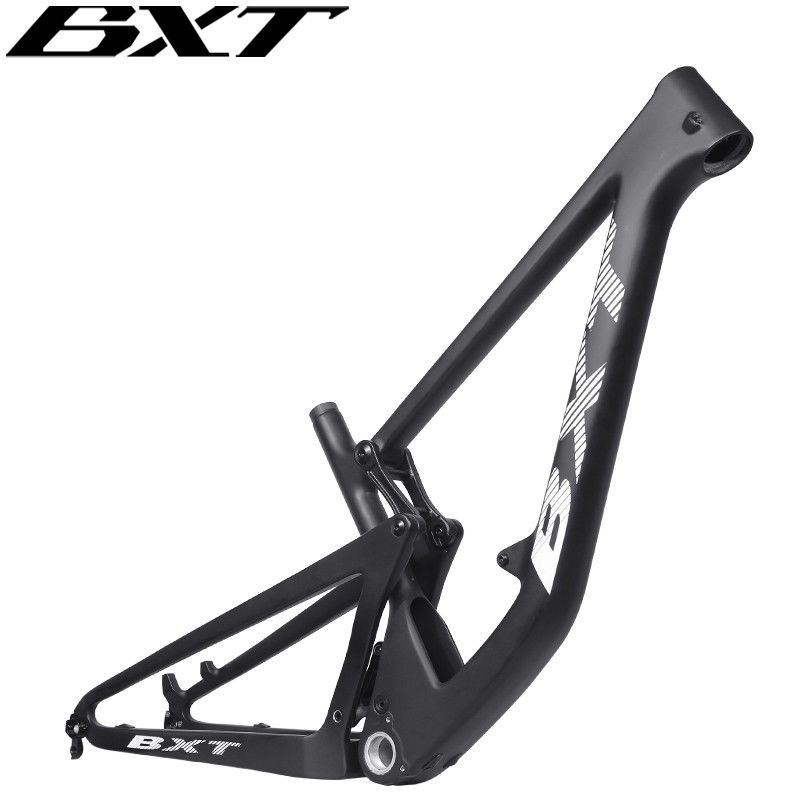

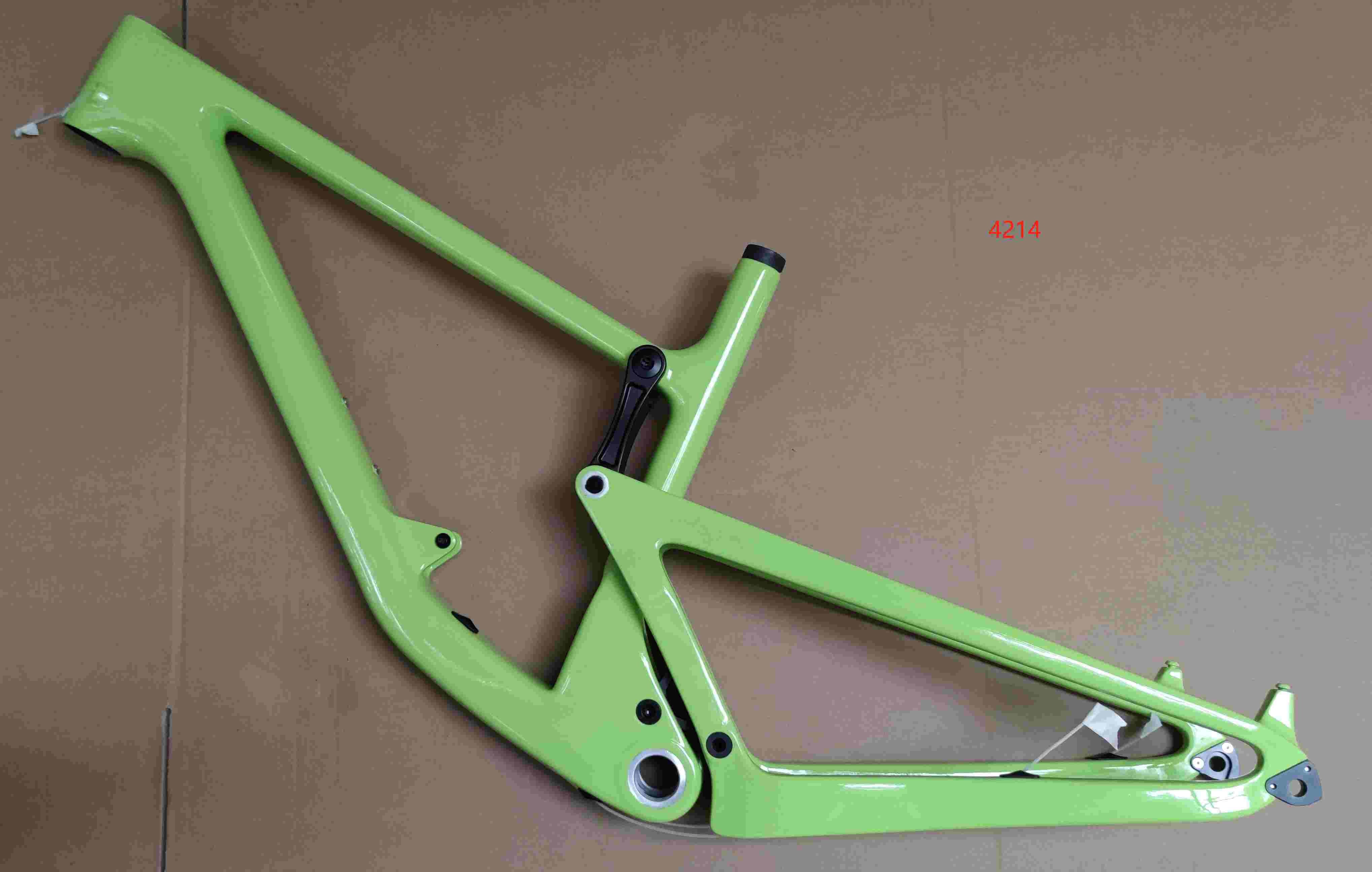

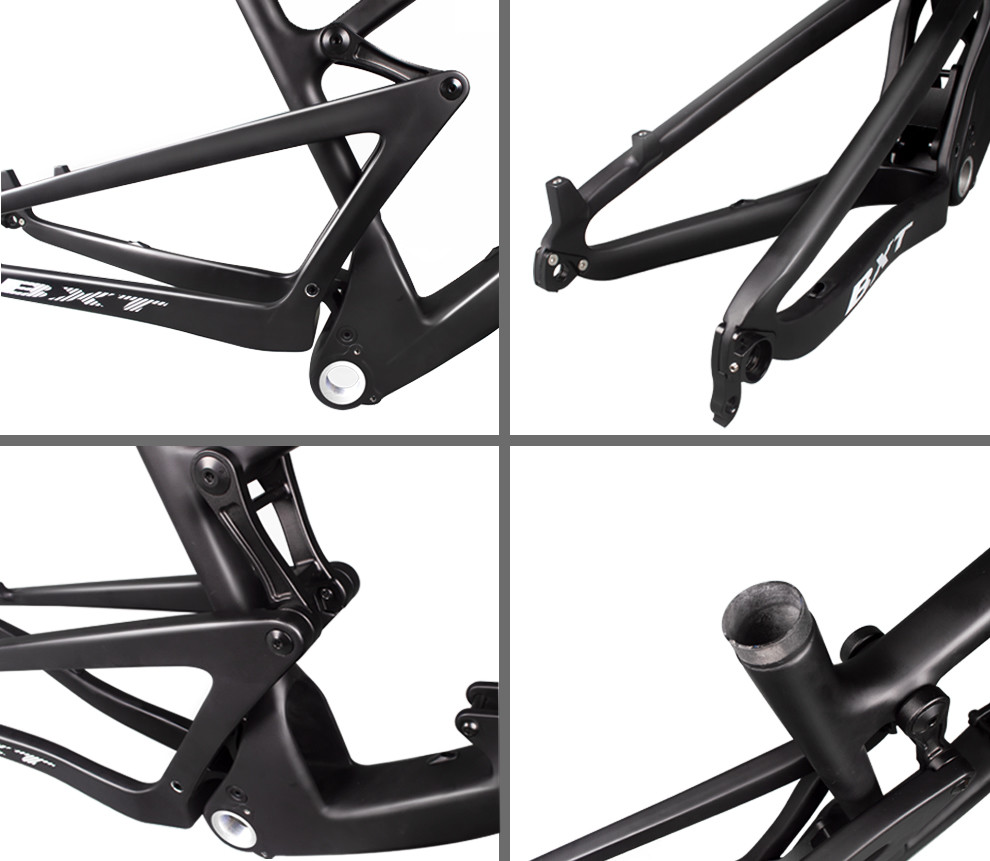

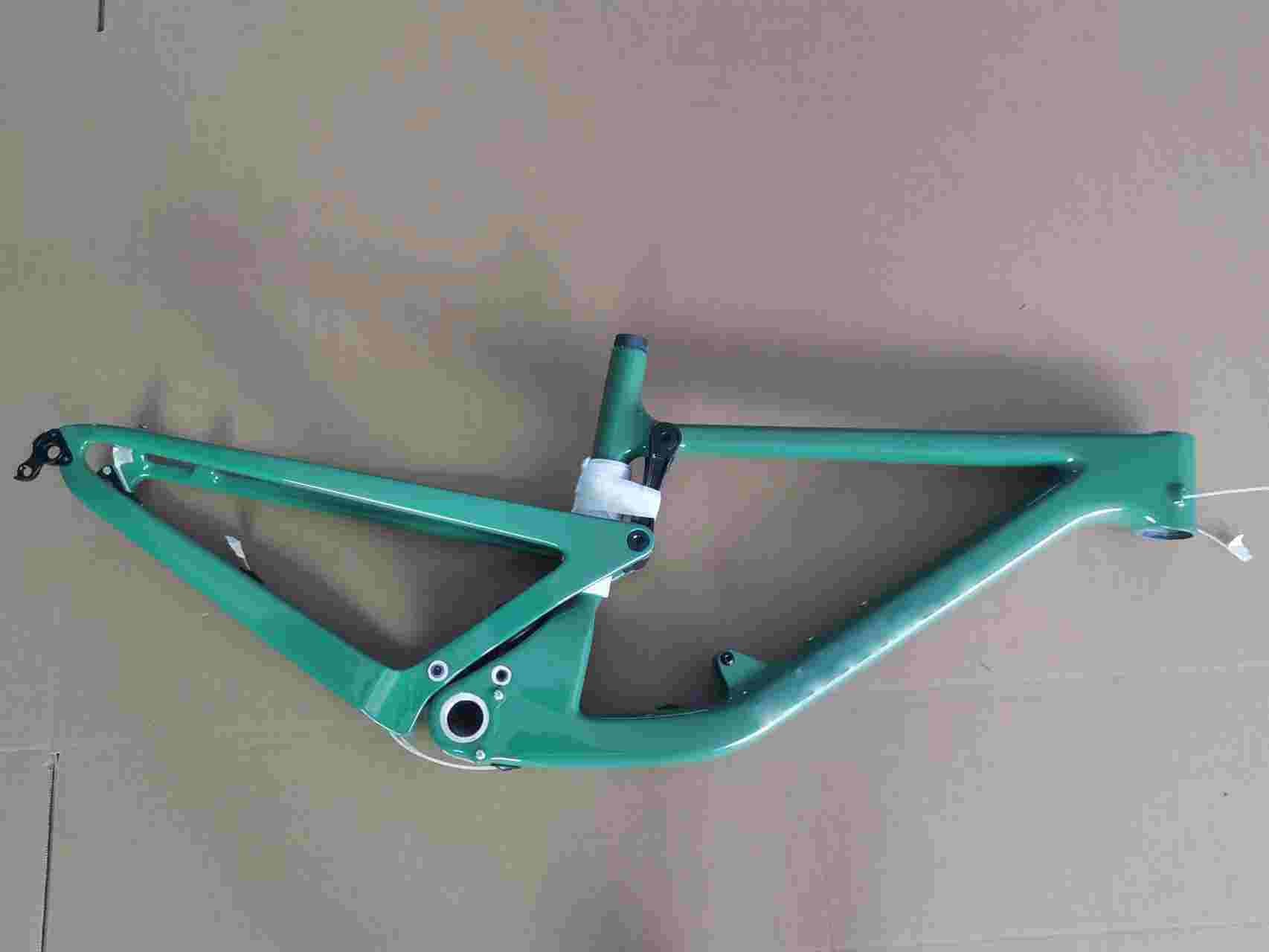

29er carbon Full Suspension VPP AM Bike Frame
AM Chinese Carbon Bike Frame 29er Thru Axle MTB Frame Model BXT-117, High modulus carbon fiber T1000 full suspension frame. 150mm frame travel. Compatible BOOST 148x12mm rear wheel specifications. Can use tires up to 2.35 inches wide. Available in S",M",L",XL" sizes.
Product Description
| Type | All Mountain Carbon Frame 29er |
| Material | T1000 Carbon Fiber |
| Frame Travel | 150mm |
| Fit for Rear Shock | Length 210mm,Bushing 24mm |
| Fit for Seat Clamp | 34.9mm |
| Fit for Seat Post | 31.6mm |
| Max load | 250kg |
| Fit for Disc Brake | 160mm |
| Fit For Bottom Bracket | Screw-in BSA(73mm) |
| Rear Spacing Specification | Boost 148x12mm |
| Fit for Headset | Tapered,Top 1-1/8(41.8mm) Down 1-1/2(52mm) |
| Fit for Tire | 29er.Max 2.4 Tire |
| Brake,Derailleur Cable | Frame Internal |
