| Place of Origin: | China |
|---|---|
| Brand Name: | BXT |
| Model Number: | BXT-MTB-097 |
| Minimum Order Quantity: | 1pcs |
| Payment Terms: | D/P, D/A, L/C, T/T |
| Type: | Full Suspension Carbon Frame 29er | Material: | T1000 Carbon Fiber |
|---|---|---|---|
| Frame Travel: | 100mm | Fit For Rear Shock: | Length 165mm,Bushing 22mm |
| Fit For Seat Clamp: | 34.9mm | Fit For Seat Post: | 31.6mm |
| Fit For Disc Brake: | 160mm | Fit For Bottom Bracket: | BSA(73mm) |
| Fit For Rear Wheel Hub: | 135x9mm And 142x12mm Or Boost 148x12mm | Fit For Headset: | Tapered,Top 1-1/8(41.8mm) Down 1-1/2(52mm) |
| Fit For Tire: | 29er.Max 2.25inch Tire,BOOST Specification Max Use 2.35inch Tire | ||
| High Light: | Full Suspension Carbon Fiber Hardtail Frame,Mountain Carbon Fiber Hardtail Frame,100mm carbon hardtail mtb frame |
||

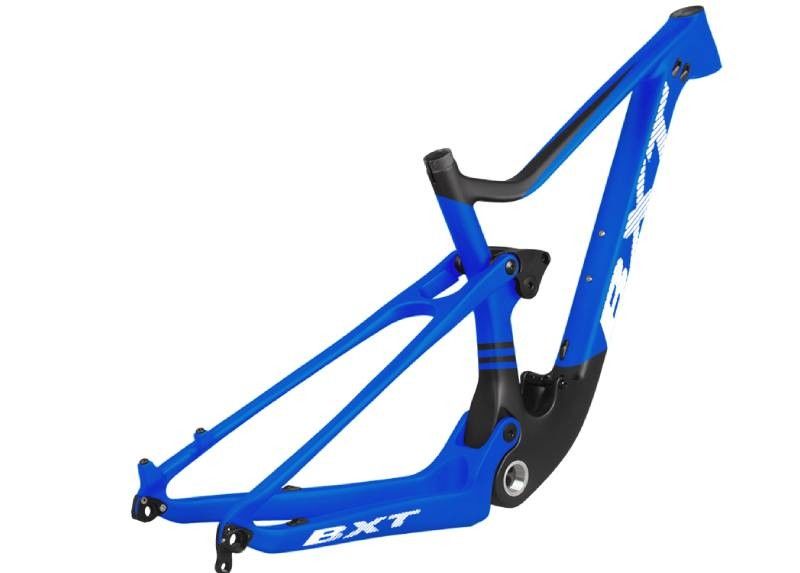

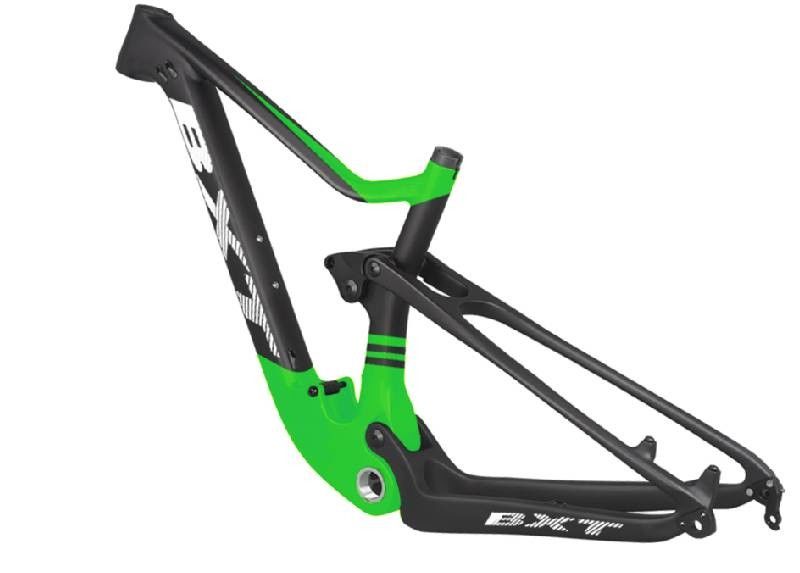

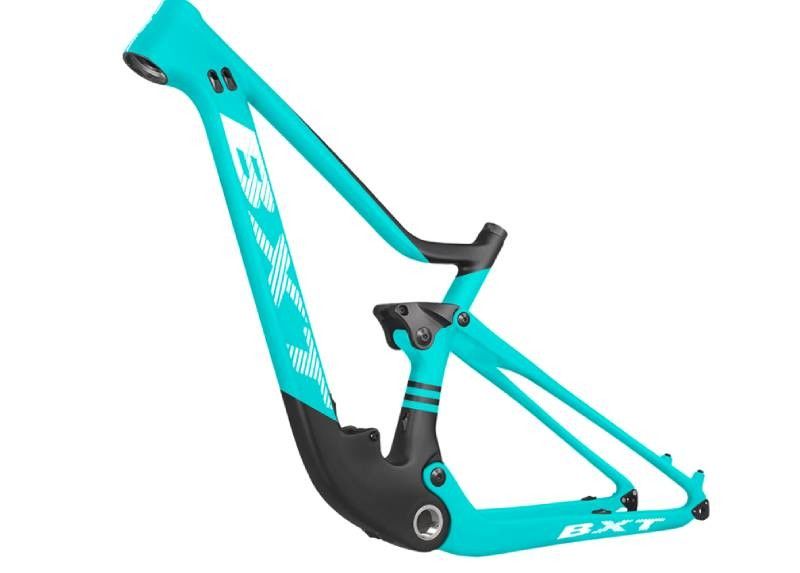

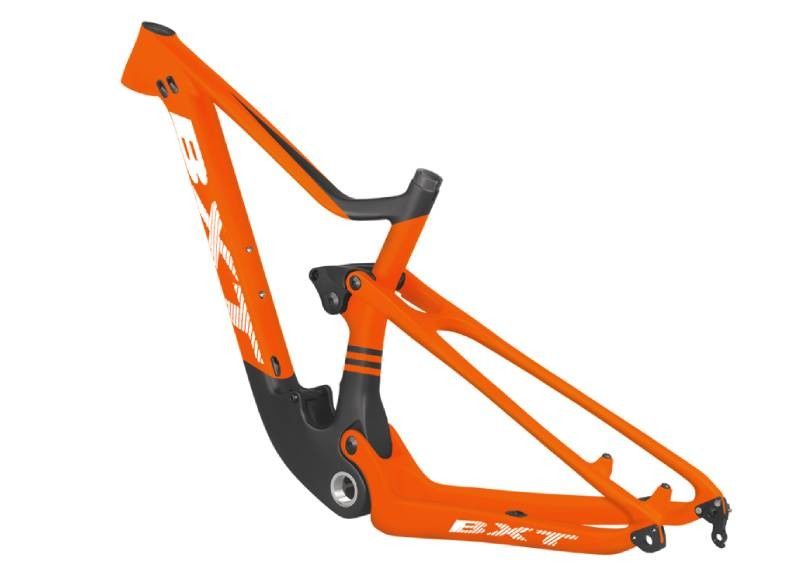

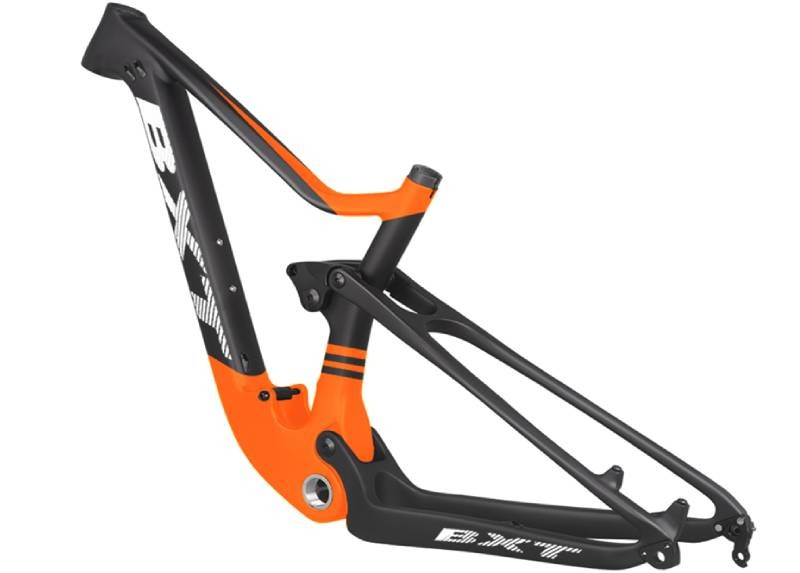

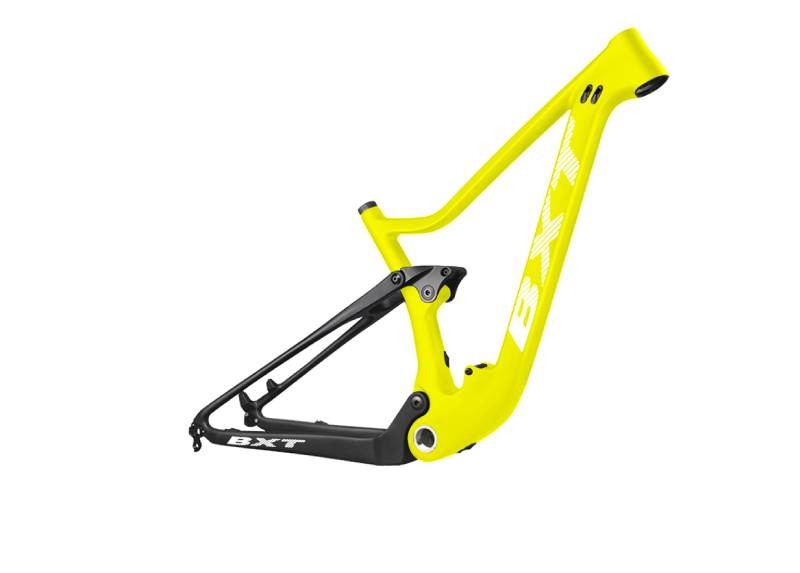

Carbon Fiber FullSuspension Frame 29er
Full Suspension Frame Carbon fiber T1000 produced by EPS technology. 100mm frame travel. Compatible with 142x12mm,135x9mm or BOOST 148x12mm rear wheel specifications. Can use tires up to 2.35 inches wide. Available in S",M",L",XL" sizes.
We would like to complete bike with the components as your required, to creat your own personalized bike. From the design work, to the selection of shifting groupset
Full suspension bike has better shock absorption,adapt to more terrains,giving you a more comfortable ride on rough roads and provide a durable riding experience.In addition,Soft tail ensures that the tires are fully gripped to maintain control on descents.
What is EPS technology?
>1. Strong carbon fiber shell, durable frame, strong and light weight.
> 2.the finished frame has better hardness,
toughness,strength to weight ratio, tightness and other qualities.
>3.Significantly improve the stability and smoothness of the
lamination and joint between the inner cavity of the frame.
>4 greatly reduce the excessive concentration of internal stress of
the frame, thelength of the finished frame life, stable quality
>5.The finished frame has a smooth appearance.
Product Information
| Model No. | BXT-MTB-097 | |
| Frame Type | Full Suspension Carbon MTB Frame 29er | |
| Material | T1000 Carbon Fiber | |
| Frame Travel | 100mm | |
| Cable Running | Frame Internal | |
| Components Compatible Size |
Headset | Tapered;Top 1-1/8 Down 1-1/2 |
| SeatPost | 31.6mm | |
| Seat Clamp | 34.9mm | |
| Bottom Bracket | Screw-in BSA(73mm) | |
| Suspension Fork | Travel: 80-100mm | |
| Rear Shox | 165mm;Bushing for 22mm | |
| Brake Systerm | Disc Brake 160mm | |
| Tire | 29er,Max 2.3Tire | |
| HUB/R | Thru 135*9mm/142*12mm/148*12mm | |
To Buyers
Welcome to BXT Carbon bike factory!
We are manufacturer and have been on this line for 10 years.
Our main products has Complete Carbon Mountain Bike, Carbon Mountain Frame,Carbon Suspension Mountain Bike,Carbon Road Frameset,Carbon E Bike Frames, Other Bicycle parts ect.
We have Advantages below:
1. OEM&ODM manufacturing welcomed and professional!
2. Sample order is available and Delivery Quickly!
3. We will reply you for your inquiry in 24 hours!
FAQ
------------------------------------------------------------------------------
Q: What’s your payment clause?
A: We accept T/T,Western Union and Paypal,and 30% should be paid in advance,the rest be paid before shipping.
Q: I am interest in the carbon fiber bike frame,but I konw nothing about it?
A: Just contact us and we will let you know everything about carbon fiber bike frame
Q: How long I can get the goods?
A: It's depend on how many product you purchase and way of shipment, we will reply you after receiving inquiry.
