| Place of Origin: | China |
|---|---|
| Brand Name: | BXT |
| Model Number: | BXT-MTB-127 |
| Minimum Order Quantity: | 1pcs |
| Payment Terms: | D/A, D/P, T/T, L/C |
| Supply Ability: | 500pcs per Month |
| Type: | Full Suspension Carbon Frame 20er | Material: | T1000 Carbon Fiber |
|---|---|---|---|
| Frame Travel: | 80mm | Fit For Rear Shock: | Length 165mm,Bushing 22mm |
| Fit For Seat Clamp: | 34.9mm | Fit For Seat Post: | 31.6mm |
| Fit For Disc Brake: | 160mm | Fit For Bottom Bracket: | BSA(73mm) |
| Fit For Rear Wheel Hub: | Boost 148x12mm | Fit For Headset: | Tapered,Top 1-1/8(41.8mm) Down 1-1/2(52mm) |
| Fit For Tire: | 20er.Max 2.4inch Tire | ||
| High Light: | Kids Bicycle Carbon Frame,Full Suspension Bicycle Carbon Frame,BXT Hardtail Mountain Bike Frame |
||

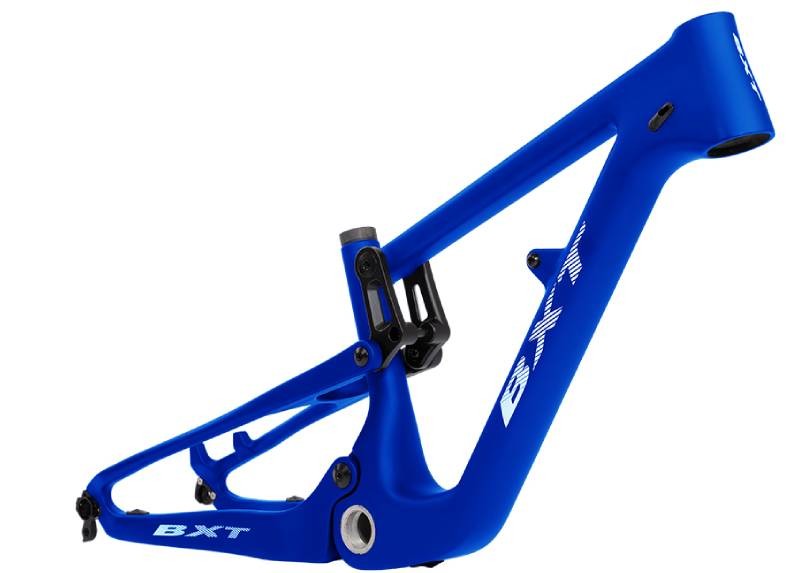

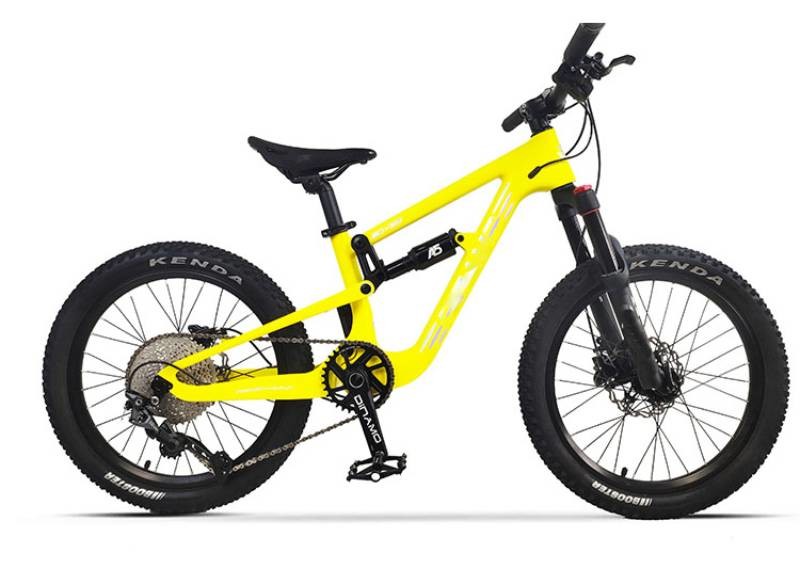

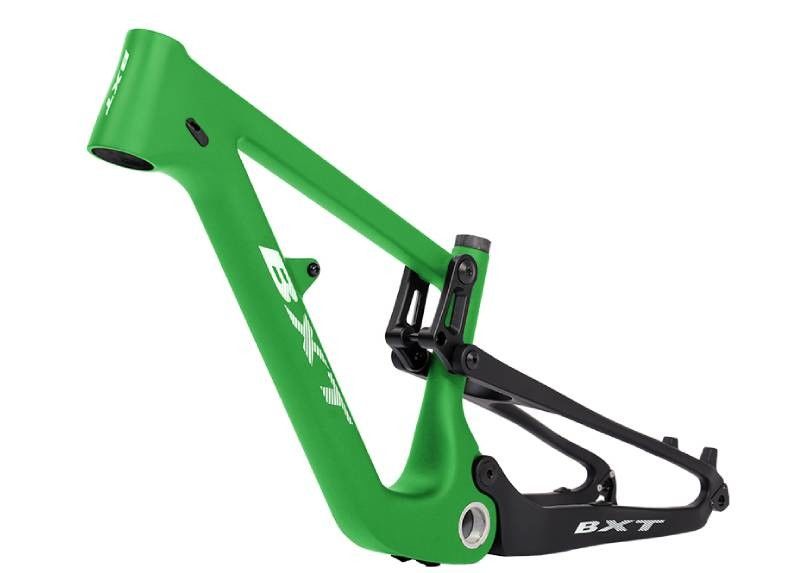

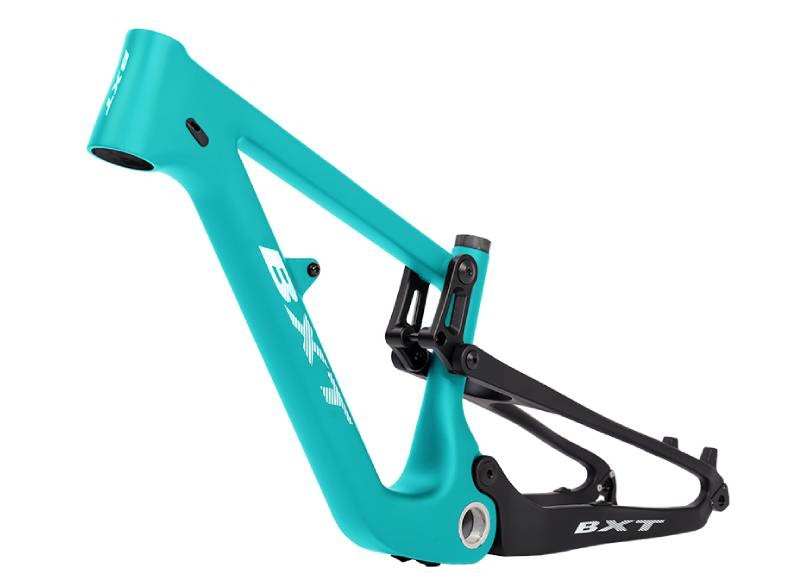

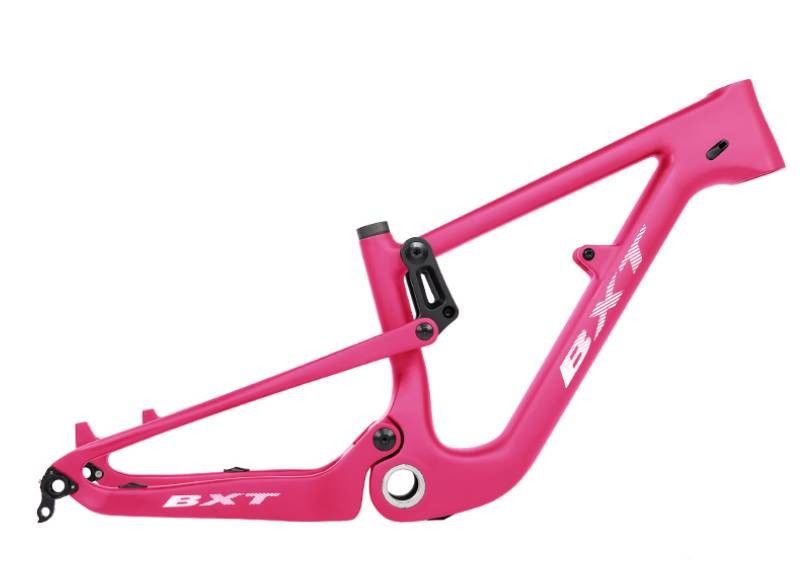

BXT full suspension frame 20er produced by EPS technogloy,which frame travel 80mm. Compatible with BOOST 148x12mm rear wheel specifications. Can use tires up to 2.4 inches wide.
Full suspension bike has better shock absorption,adapt to more terrains,giving you a more comfortable ride on rough roads and provide a durable riding experience.In addition,Soft tail ensures that the tires are fully gripped to maintain control on descents.
What is EPS technology?
>1. Strong carbon fiber shell, durable frame, strong and light weight.
> 2.the finished frame has better hardness,
toughness,strength to weight ratio, tightness and other qualities.
>3.Significantly improve the stability and smoothness of the
lamination and joint between the inner cavity of the frame.
>4 greatly reduce the excessive concentration of internal stress of
the frame, thelength of the finished frame life, stable quality
>5.The finished frame has a smooth appearance.
Production Information
| Type | Full Carbon Suspension MTB Frame 20er |
| Material | T1000 Carbon Fiber |
| Frame Travel | 80mm |
| Fit for Rear Shock | Length 165mm,Bushing 22mm |
| Fit for Seat Clamp | 34.9mm |
| Fit for Seat Post | 31.6mm |
| Fit for Crank | 125mm |
| Fit for Chain Wheel | Max 34T |
| Seat Post Depth | 155mm |
| Fit for Disc Brake | 160mm |
| Fit For Bottom Bracket | Screw-in BSA(73mm) |
| Fit for Headset | Tapered,Top 1-1/8(41.8mm) Down 1-1/2(52mm) |
| Fit for Tire | 20er.Max 2.4Tire |
| Rear Spacing Specification | Boost 148x12mm |
| Suitable Height | 120cm-135cm |
| Max load | 250kg |
| Recommend Fork Travel | 80-120mm |
| Brake,Derailleur Cable | Frame Internal |
